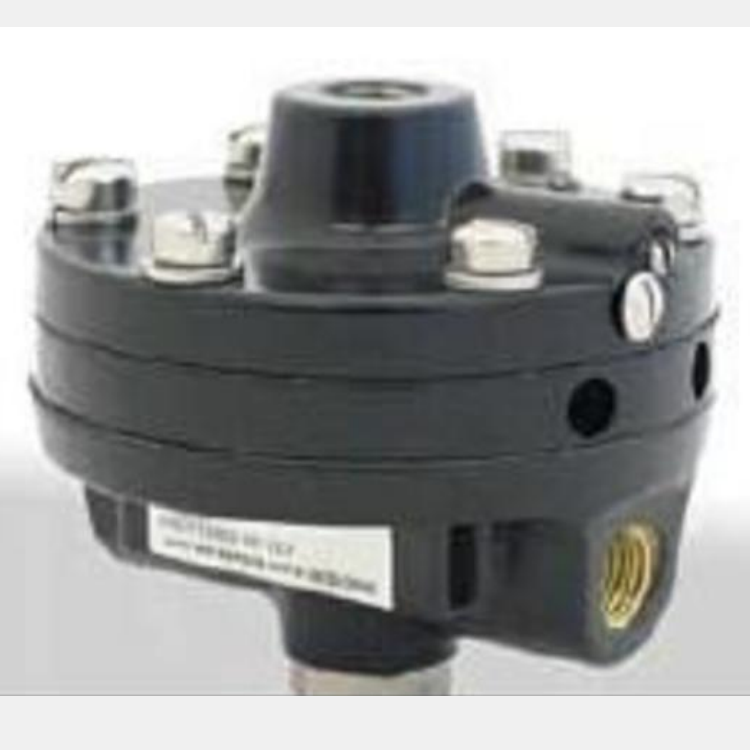

Siemens西门子高流通继动器Model61H

SiemensBooster Relays - 61H and 61VH西门子空气放大器

常见型号：

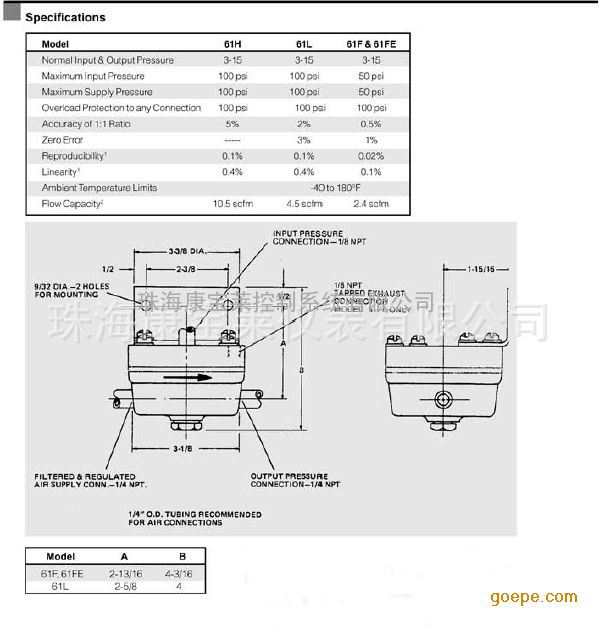

Models 61H   Models 61L   Models 61F  Models 61FE   Models 61VH

The series 61 Booster Relays reproduce pneumatic signals in a 1:1 ratio for applications where input isolation or increased flow capacity are required.

61H is a High-Capacity Booster Relay designed to improve the stroking speed of large diaphragm valves.

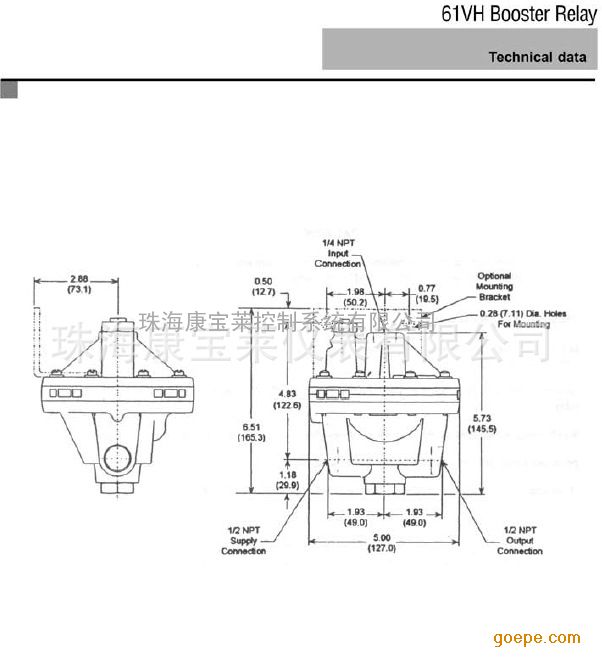

61VH is a High-Capacity Booster Relay designed for use on control valve actuators that require very fast stroking speeds. Both 61H and 61VH feature a stabilizing bypass needle valve between the input and output, which eliminates the need for an externally piped bypass.
